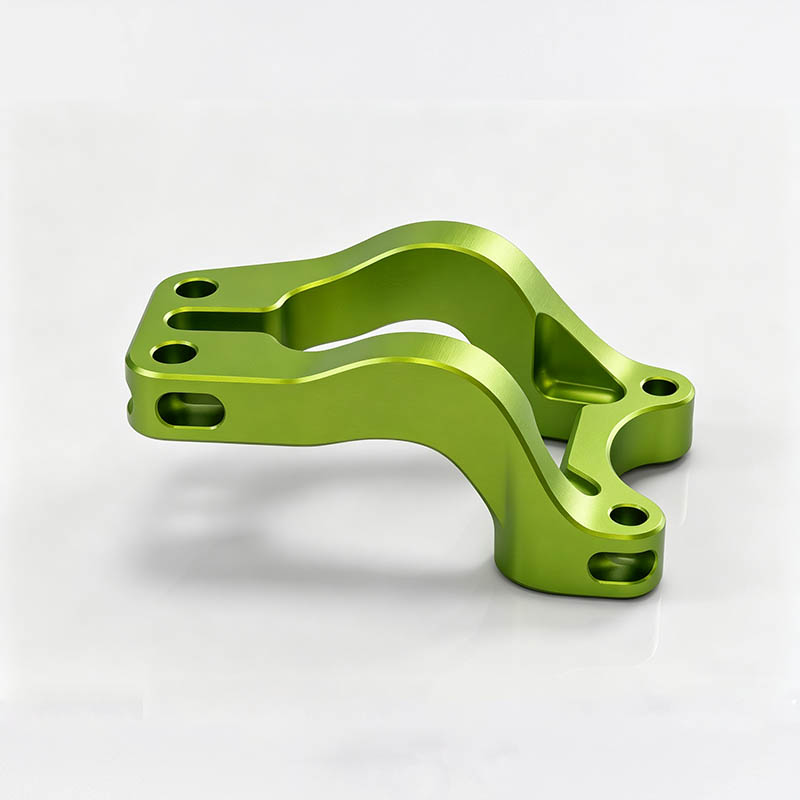

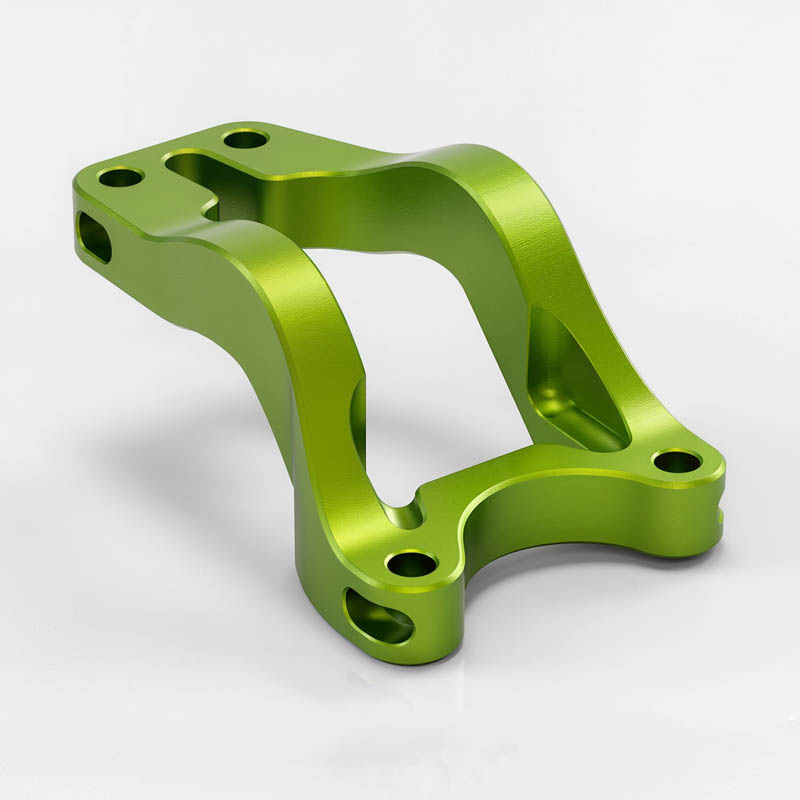

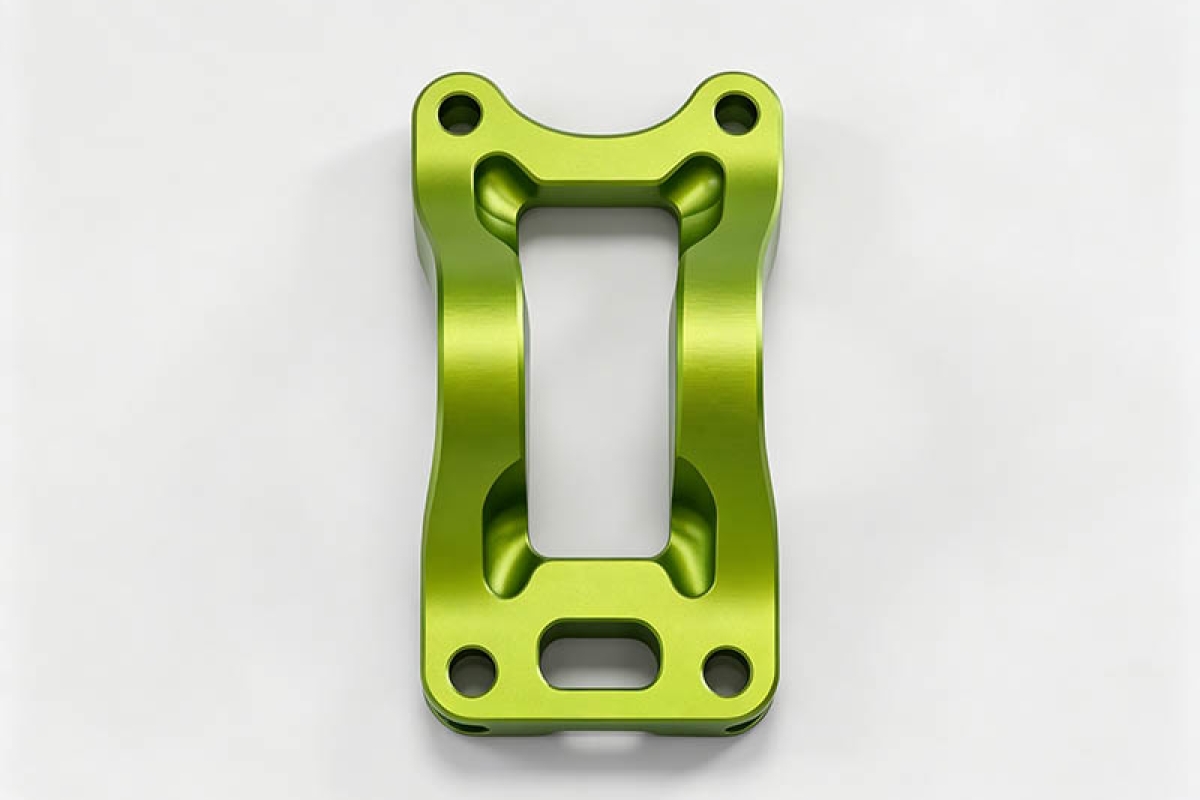

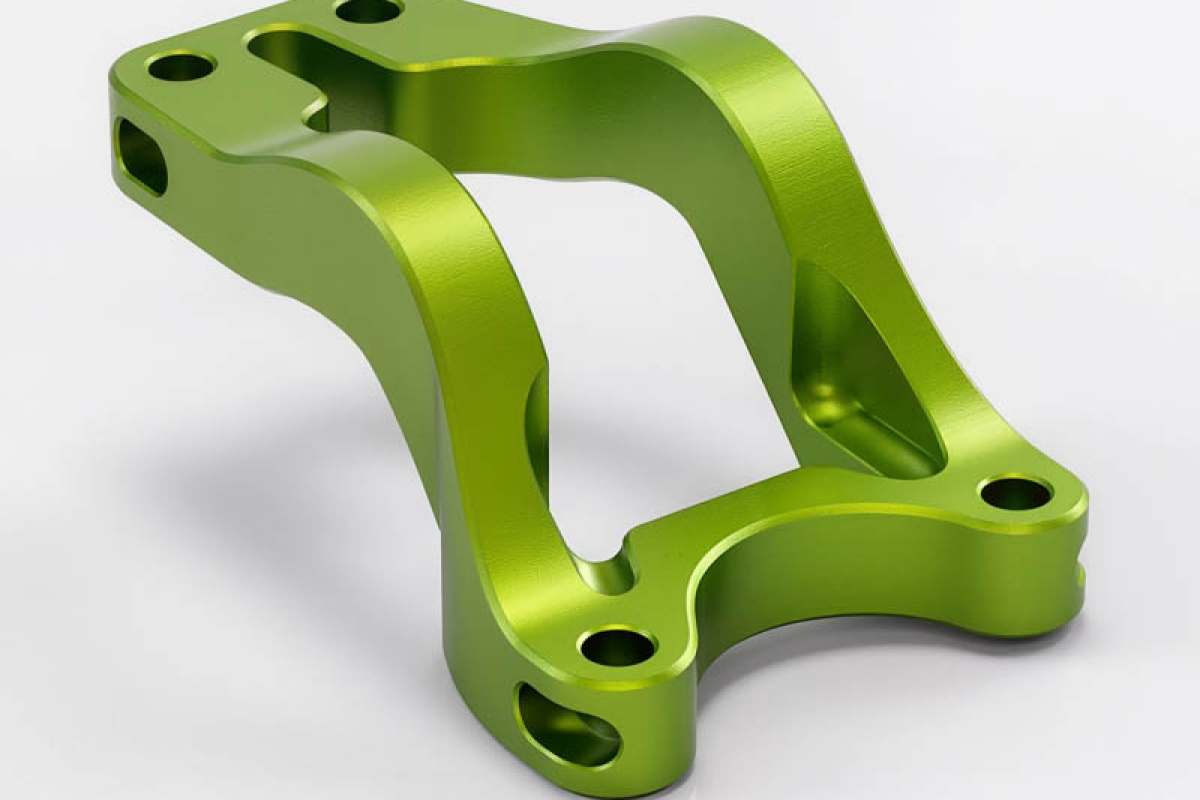

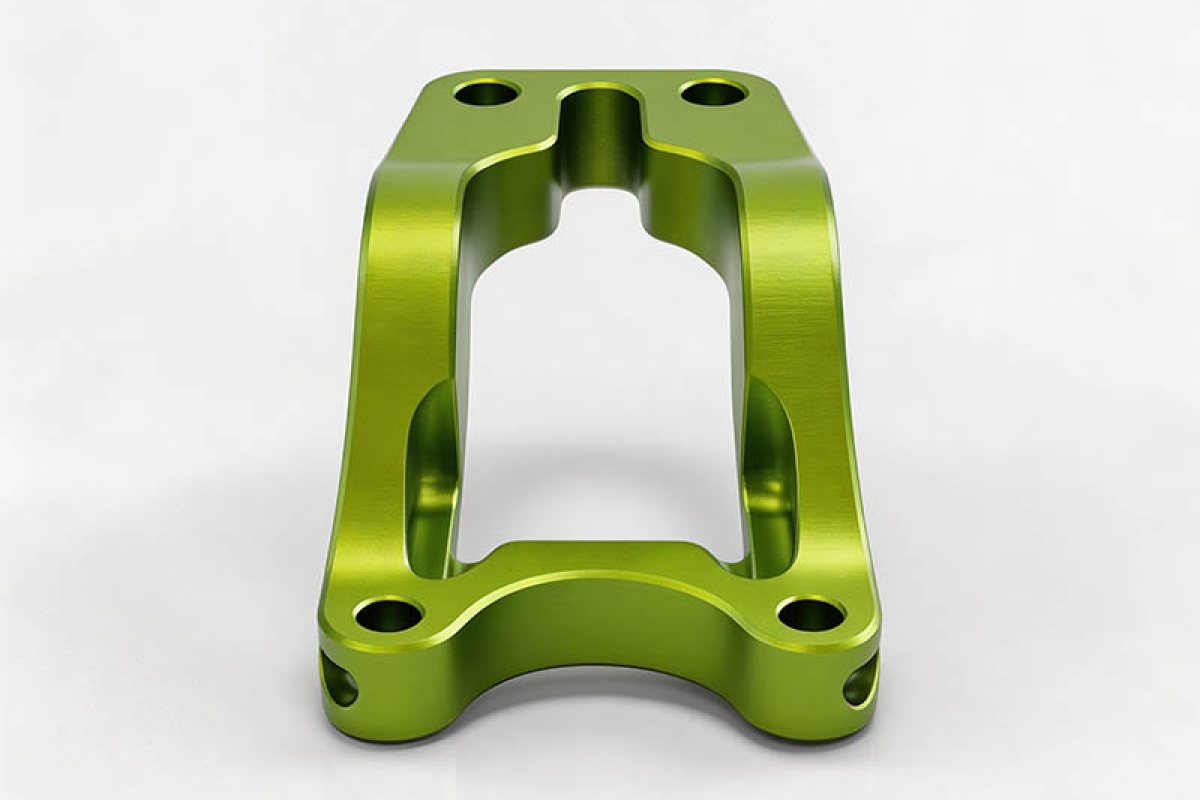

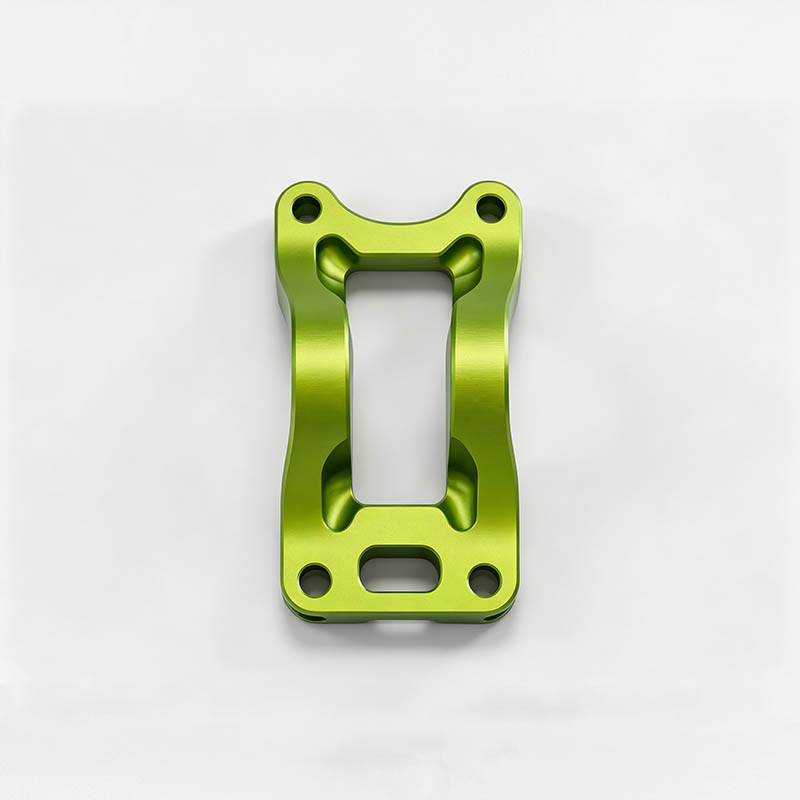

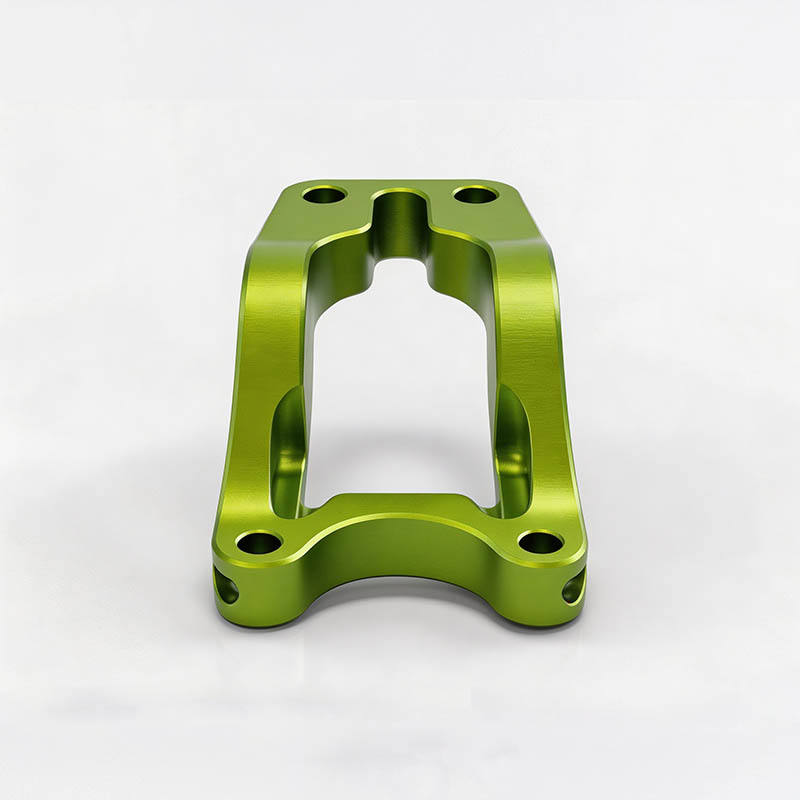

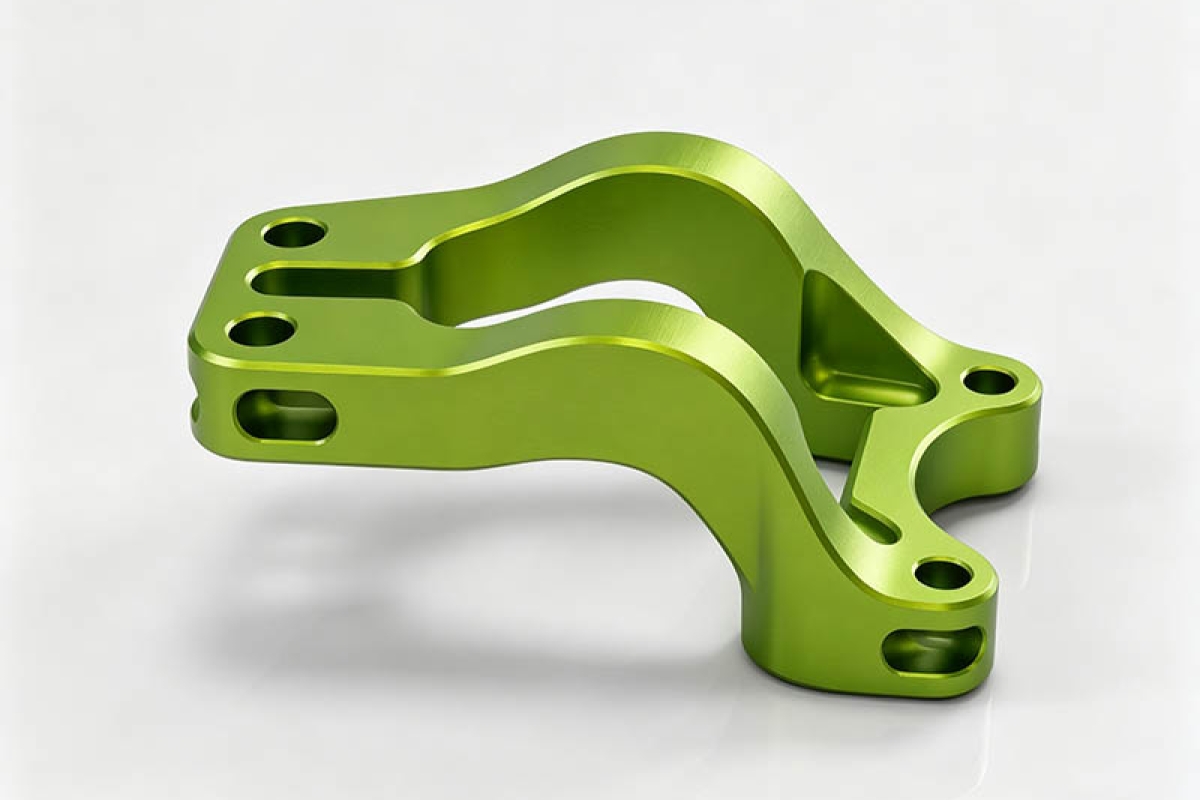

5-Axis CNC Machining Case: Color Anodized 6061-T6 Aluminum Alloy Outdoor Safety Pulley Bracket

We successfully delivered an integrated 5-axis CNC machined 6061-T6 aluminum pulley bracket for high-end outdoor safety equipment manufacturers, rigorously compliant with outdoor safety hardware load standards, ensuring reliable structural strength and long-term corrosion resistance in harsh outdoor environments.

Project Overview

Key Technical Highlights

• Micron-Level 5-Axis Machining Precision: Achieves ±0.03mm overall profile tolerance, H7 accuracy for locating pin holes and φ0.02mm pulley bore concentricity. One-setup 5-axis linkage forming eliminates secondary clamping errors on intricate free-form curves.

• Innovative Structural & Process Design:

  • Stress-Controlled Manufacturing Flow: Staged roughing and finishing with intermediate natural aging releases internal cutting stress, eliminating post-anodizing deformation risks.

  • Integral Lightweight Construction: Optimized hollow weight-reduction cutouts preserve full rated tensile load while reducing overall weight; monolithic machining avoids failure points of welded split structures.

• Surface & Functional Expertise:

  • Full-radius CNC interpolated fillets on all edges eliminate stress concentration under dynamic tensile loads, raising the safety factor for load-bearing climbing components.

  • Custom matte emerald green hard anodizing (10–15μm) ensures uniform color across complex geometry, with 500-hour salt spray resistance and long-term UV stability for harsh outdoor environments.


    Simplified Machining Process Card

Quality Verification

First Article Inspection (FAI)
-3D CMM coordinate scanner captures all curved profiles and critical dimensions; full formal inspection report provided for client approval prior to mass production.

Mechanical Safety Tensile Test
Random sampling for static tensile load testing, verified breaking load reaches 2.5 times the rated working load to comply with outdoor safety hardware standards.

Surface Performance Testing
-Film thickness measurement at multiple curved positions
Cross-hatch adhesion test: No coating peeling
500-hour neutral salt spray test: Zero rust or corrosion
UV aging test: No color fading after prolonged UV exposure

Assembly Fit Verification
-Full trial assembly with matching pulley shafts and locating pins; smooth rotation without jamming, consistent assembly clearance.
100% Pre-shipment Visual Inspection
-Each piece checked for surface scratches, dents, anodizing color difference and residual burrs, then packed with vacuum moisture-proof anti-scratch bags.

Industry Applications

This project demonstrates our leadership in precision optical components and high aspect-ratio machining, ideal for:
✓Outdoor Rock Climbing Safety Hardware
✓ Mountain Rescue & High-Altitude Fall Protection Gear
✓ Aerial Work Safety Pulley Components
